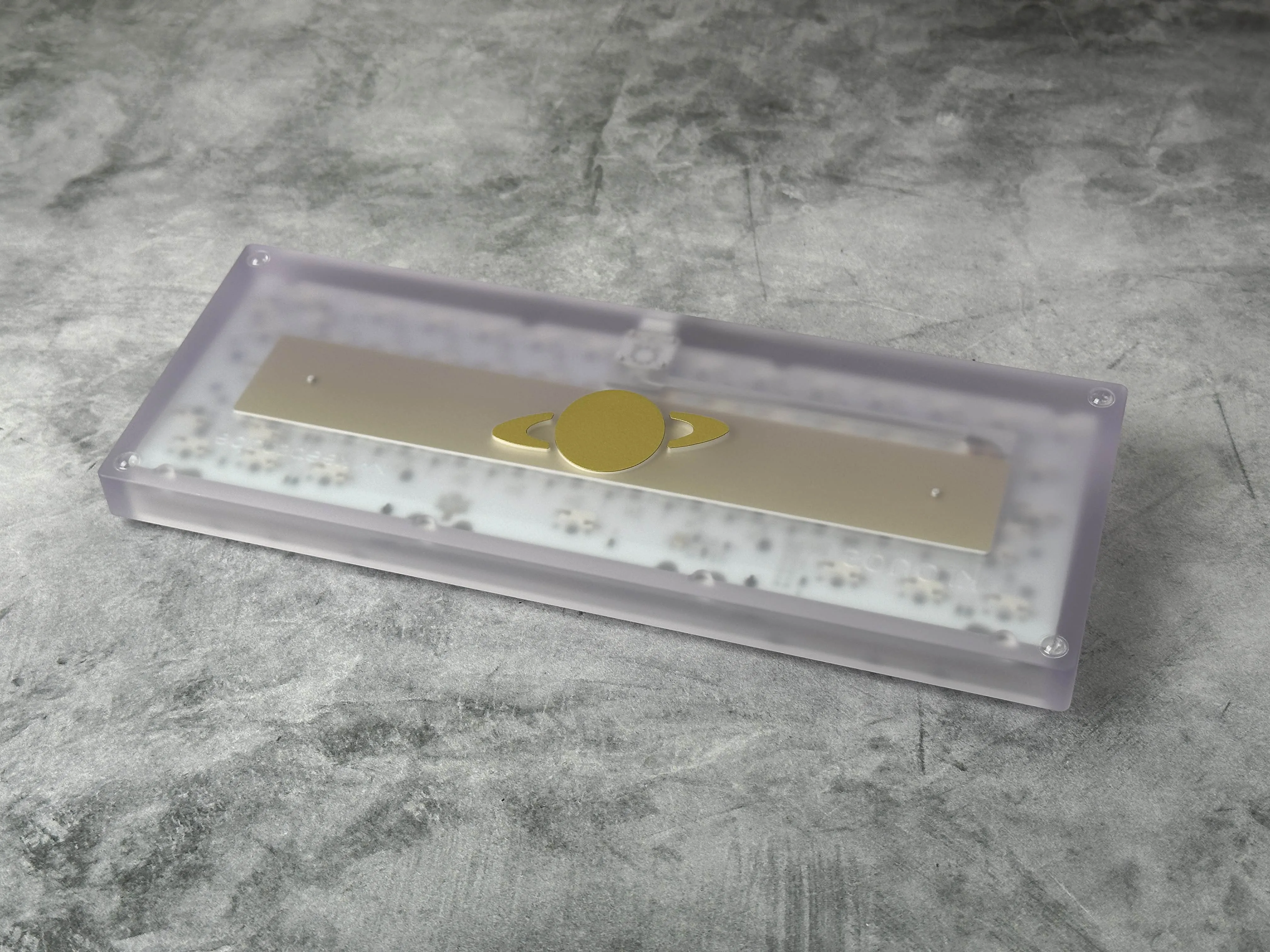

kronos is the first custom mechanical keyboard kit by keebscape co. It is an unassuming take on the classic 60% form factor O-ring mount design. The chassis is comprised of a single piece of polycarbonate with an internal brass weight. The weight fits through the bottom of the polycarbonate chassis in the shape of a minimalistic representation of Saturn. Named after the Greek deity, Kronos (also written as Cronus, or Cronos), the board features subtle engravings reminiscent of Galileos earliest sketches of Saturn, from 1610 and 1616. The sandblasted polycarbonate chassis in conjunction with RGB underglow from the PCB results in a pleasing diffusion of light throughout the uniform bezels. This board does not offer anything particularly groundbreaking in terms of design or materials used in construction, but our hope is that it will provide an in-stock, high-quality 60% O-ring mounted custom keyboard kit at a relatively affordable price to those who want it.

Please note that the keyboard kit cannot be purchased with discount codes applied. Orders with discount codes applied will be automatically canceled.

Specifications

Kit Contents
1x Chassis (Polycarbonate, Brass Weight)
1x Aluminum Switch Plate Anodized Black
1x Unified C5 Daughterboard JST-JST Cable
1x 50A O Ring
1x kronos Carry Case
Bumpons
All necessary screws for assembly

Chassis:

Materials: Clear 'Frosted' Polycarbonate, Brass
Layout: WK
Typing Angle: 6.8 Degrees
Front Height: 17.4mm
Manufacturer: DDS

Mounting:

Gummy O Ring
50A Durometer O Ring Included in Kit

PCB:
Designed by Gondolindrim
Hotswappable (White) and Solderable (Black) Options Available
1.6mm Thick FR4
Gold Pads
JST Connector to Unified C5 Daughterboard
QMK/VIA Compatible

Solder PCB Layout

Hot Swappable PCB Layout
